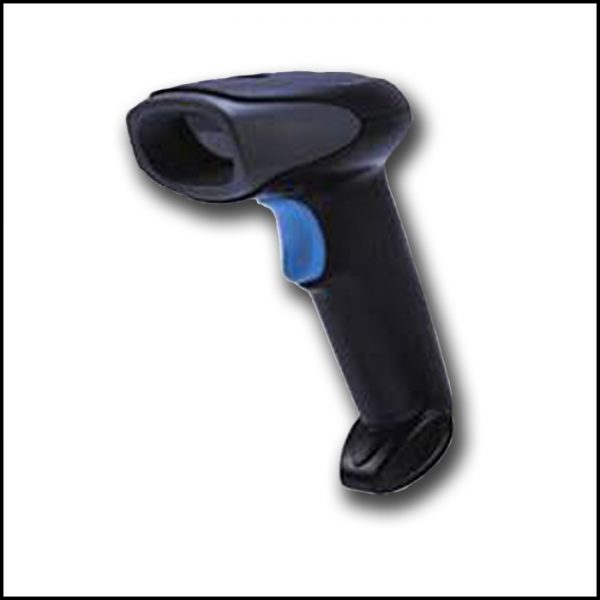

MC 300(BTEK)

BTEK MC300 is the perfect handheld 1D barcode scanner for small businesses or much less busy environments. The scanner is capable of 120 scans per second and is able to read from a fair distance. It has excellent decode capability.

The device is plug and play via USB interface and works out of the box.

It does not need to install any driver because it works similar to keyboard input.

With Durable construction combined with future-proofing, the device is available in black and grey colour.


Description

  • Performance Parameters Light Sources 650nm visible laser
  • Scan type: single laser
  • Scan speed: ≥350scans/second
  • Precision: 3mil(0.076mm)
  • Scan width 30mm﹫scanner window, 220mm﹫200mm
  • Depth of scan field 0-300mm
  • Scan Angle: Yaw 55°,Pitch 65°,Rotation 30°
  • Decode capability: EAN-8 EAN-13,UPC-A ,UPC-E,Code39, Code93,Code128,EAN-128,Codabar,Industial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,China post code and all 1D barcodes
  • Interfaces RS232,USB
  • Print contrast ≥30% Error Rate: ≤1/50million
  • Scan Method: Manually/Continuously
  • Physical Parameters
  • Scanner Size 165mm(L)*67mm(W)*97mm(H)
  • Weight 180g with cable Shell Material ABS+PC
  • Cable Length 1.8m
  • Electrical Parameters
  • Voltage 5V Operating Current 70mA EMC CE, ROHS, FCC compliance
  • Environmental Parameters
  • Operating Temperature -20℃-50℃
  • Storage Temperature -40℃-60℃ Relative hunidity 5%-95%(non condensing) environment luminance 0-10000lux
  • Drop Resistance Withstands multiple times 1.5 meters drops
  • Packing Level IP54
