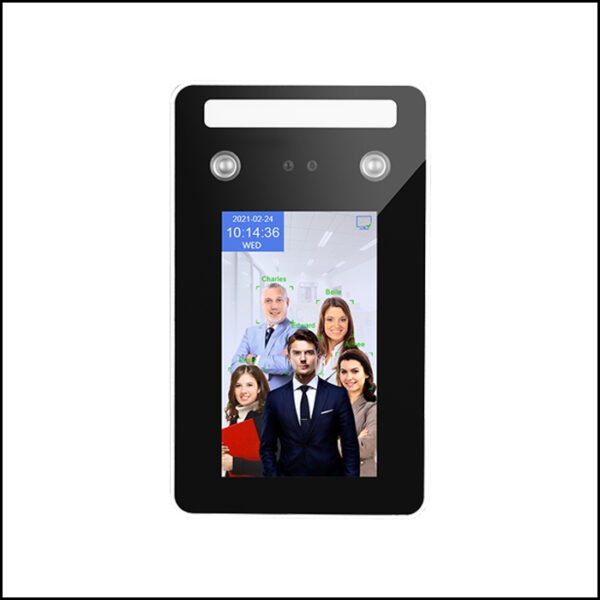

| Product name | Al Dynamic Face Recognition Time Attendance Access Control Terminal |
| Screen | 5.0 Inch, HD 720*1280, Capacitive Touch Screen |
| Keypad | Touch keypad |
| Operation system | LINUX 3.10 |
| CPU NPU | 1.2G Dual-Core ARM Cortex-A7, 600G (0.6T) |
| 256MB DDR3 | |
| ROM | eMMC Flash 4GB |
| Binocular camera | 200W Colorful WDR+200W Infrared live camera |
| Logs capacity | 500000 |

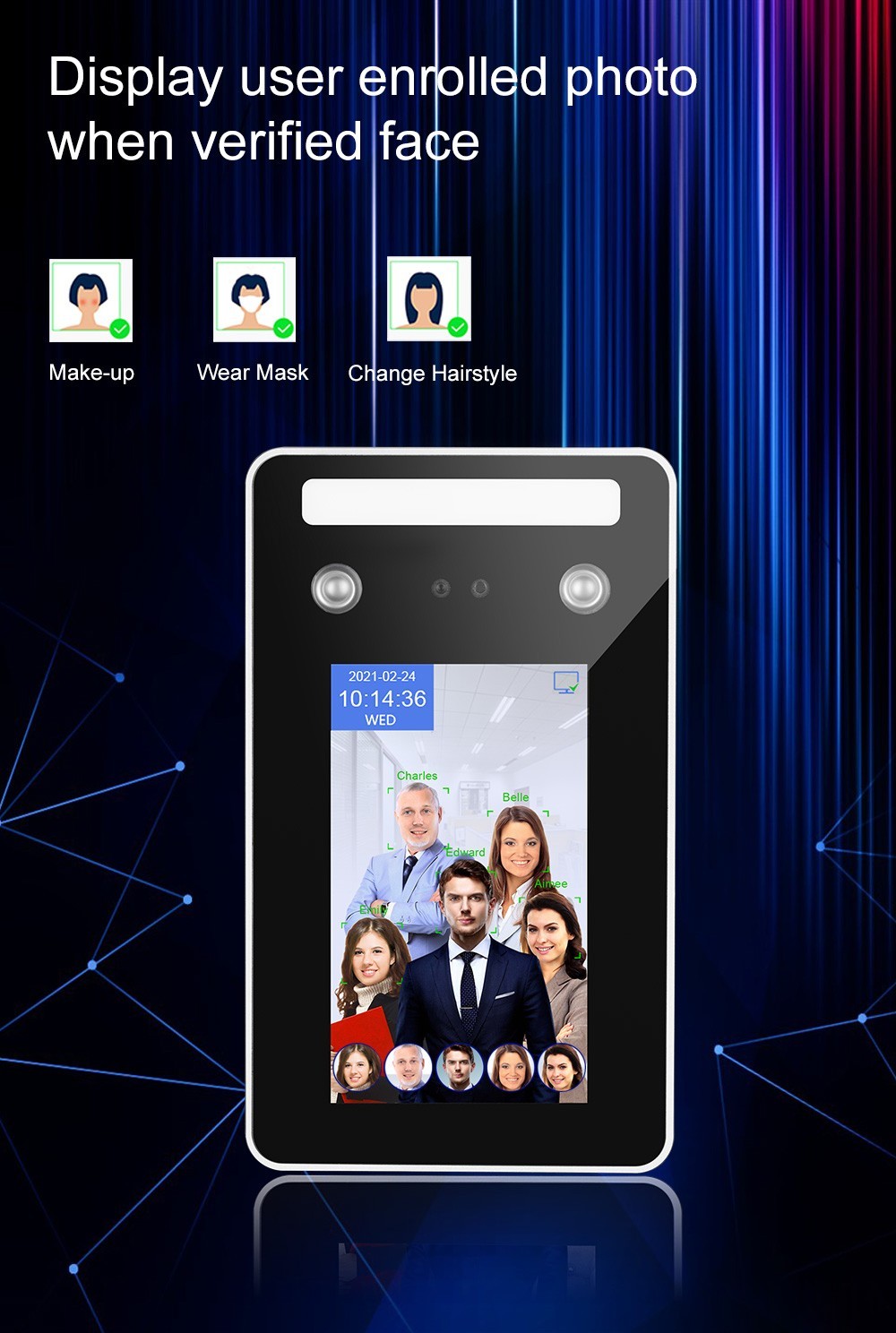

| Face Registration | Local operation: Enroll face with the machine, import user photo with U diskSoftware operation: Import user photo to software, capture user photo with camera |
| Verification | Dynamic face recognition, password, ID/IC card optional |
| Face capacity | 5000 (10000/50000 optional) |
| Card Capacity | 5000 (10000/50000 optional), ID Card Standard, IC Card Optional |
| Password Capacity | 5000 (10000/50000 optional) |
| Face Recognition Accuracy | 99.70% |

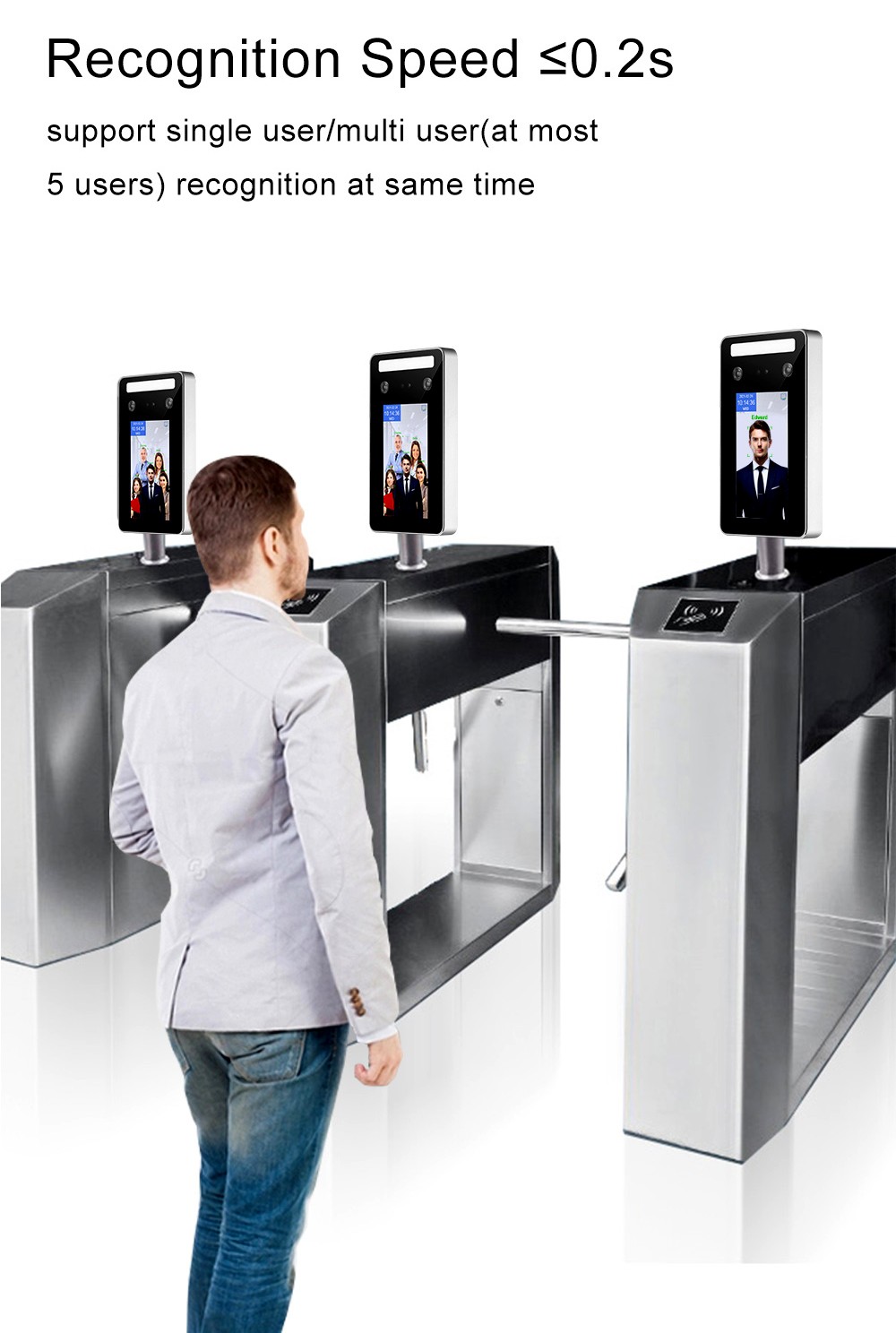

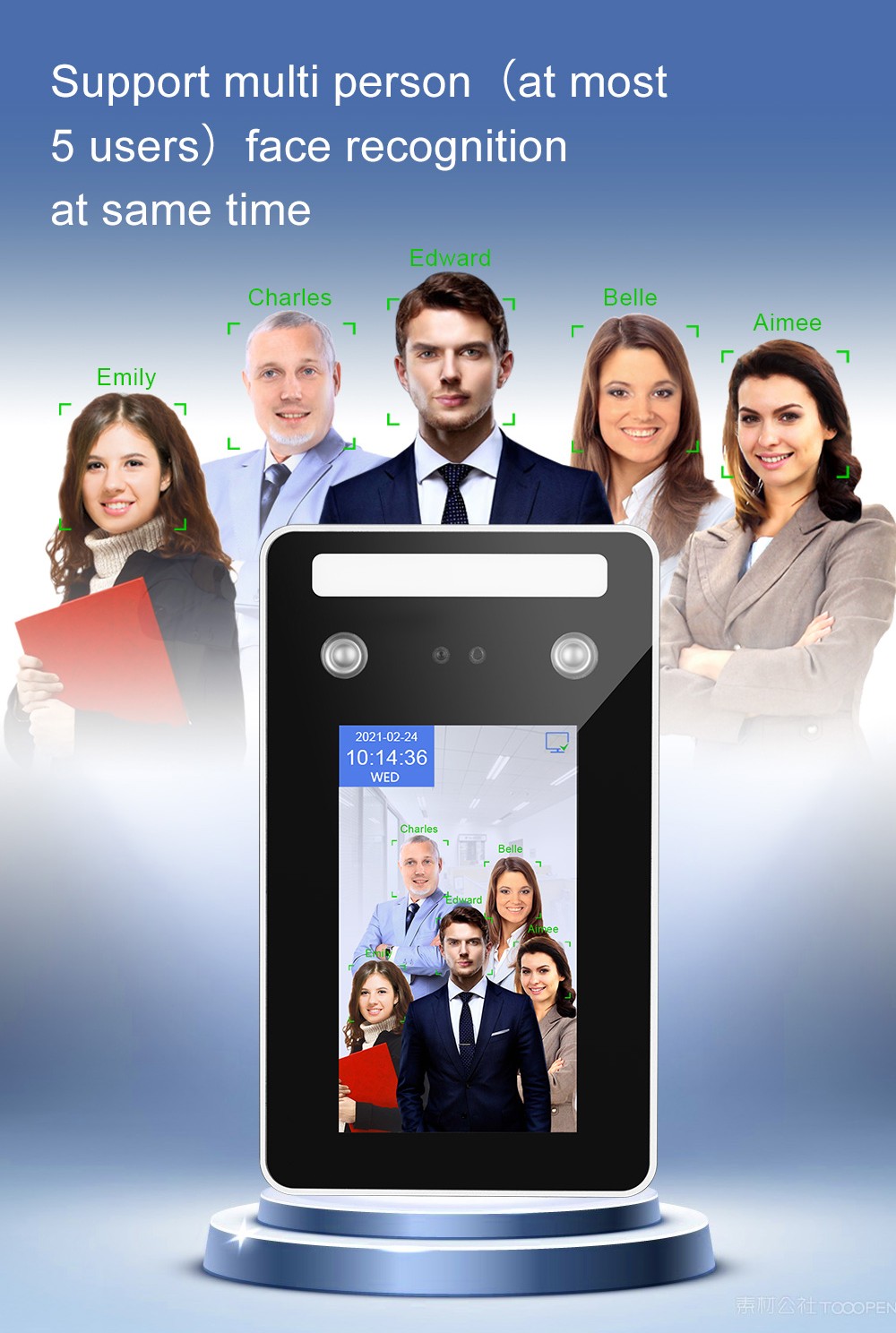

| Recognition Speed | SO.2s, support single user/multi user(at most 5 users) recognition at same time |
| Recognition Distance | 0.5-2.5 meters (0.5-1.5 meters with live face recognition on) |
| Prevent Photo | Dual camera anti-counterfeiting, prevent recognition with photo/video |
| Principle of Identification | Face algorithm technology of multi-task cascaded convolutional neural network based on video stream for dynamic face detection, tracking and recognition |
| Wide dynamic range, support accurate face recognition under Strong light, dark light and backlight | |
| USB | USB2.0x 1 , Support U disk import/export data |
| Power supply | DC12V interface x 1 |
| Speaker Interface | Reserved for extended Speaker Interface |
| Network Communication | TCP/IP, Support CIS LAN communication, Wifi (optional) |
| Free Attendance software | Support exporting excel attendance report with U disk |
| Shift | Support shift setting and importing shift schedule with U disk |
| Management Software | Support PC software to manage data through network connection with equipment |
| Access Control Function | Door unclosed alarm, forced door opening alarm, alarm linkage and Output, one set of door opening signals, one set of alarm signals, time permission control, connect external access control reader,Wiegand 26/34 output |
| Environmental adaptability | Working temperature: -15tev+45t (storage temperature -40t’v+65t)Working humidity: (storage humidity 200/6490±20/0)Dark environment: LEDSoft light automatic fill light (Automatic control according to ambient light) Ambient light adaptation range: 0-50000Lux |
| Multi language | English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese, Korean, etc |
| Broadcase and ring | Support display name, voice broadcase name, builtin bell ring |
| Automatic fill light | Support infrared fill light, the white fill light automatically lights up when face is captured in dark light |
| Working Current | stand-by current: 310mA, Working current: 520mA |
| QR Code Scanner | Support |
| Working Voltage | DC12V |
| Installation Way | Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand |
| Device Dimension | 185×1 IOx20mm |
| Color box dimension | 257x171x90mm |
| Carton dimension | Size: 480x438x229mm, 12Kg/carton, •10á/carton |
